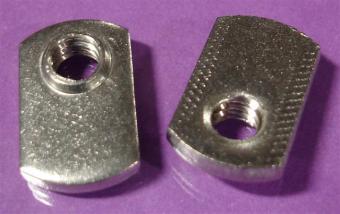

Single Tab Spot Weld Nut

This Tab Spot Weld Nut is a good choice when space limitation is a consideration. This weld nut features an optimum welding tab that will accommodate a variety of electrode sizes and will allow use of typical equipment used in a standard production environment. These industrial fasteners are offered by Monroe-JHP Fasteners in a variety of materials and thread sizes (inch and metric).


Typical Properties of the Tab Spot Weld Nut

Material:

Your choice of :

  • C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
  • 18-8 Stainless Steel (passivated finish) Threads: Per the following:
  • Inch: Unified Standard Class 2B ASME B 1.1-2003
  • Metric: ASME B 1.13M-2005 Available thread size:
  • Inch Metric
    • #6-32* M3.5 x 0.6*
    • #8-32 M4 x 0.7
    • #10-24 M5 x 0.8
    • #10-32 M6 x 1.0
    • 1/4-20 M8 x 1.25
    • 1/4-28 M10 x 1.5*
    • 5/16-18
    • 5/16-24
    • 3/8-16
    • 3/8-24

* Not available in Stainless Steel

Note: A variety of thicknesses and lengths also available.

Application notes:

In addition to being used as a fastener, the characteristics of this Tab Spot Weld Nut also make it an ideal choice for use as a brace or stiffener. This Weld Nut is production-friendly and its use can result in significant reductions in overall fastener-assembly costs. No custom tooling or equipment is required.

This Tab Spot Weld nut combines exceptional strength with versatility of use. Its robust design and construction ensure that the resulting weld will be strong and durable. It is an excellent choice for products or applications that require a welded fastener within a limited space.

Monroe-JHP Fasteners offers expert consultation on the use of these types of industrial fasteners. If you are unsure as to which type of weld nut would best serve your needs, we can help guide you in the right direction. Once you make a product selection, you will find that our pricing and overall customer service is second-to-none.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
