3 Projection Hex Weld Nut - Short & Long Pilot

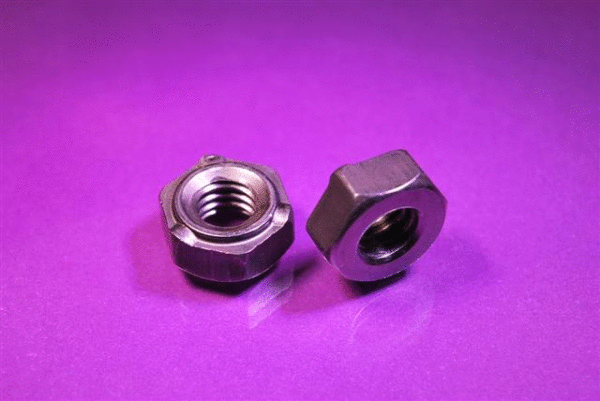

This Projection Weld Nut features three uniform weld projections that provide solid contact with the weld surface. The projections help to accommodate weld surfaces that may not be perfectly flat. It also features a precision pilot that enables accurate location and threading of mated components. These industrial fasteners are offered by Monroe-JHP Fasteners in a wide assortment of materials, dimensions, and thread sizes (inch and metric).
Typical Properties of the Projection Weld Nut
Material
- C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
- Austenitic Stainless Steel (Passivated finish)
Threads
- Inch: Unified Standard Class 2B ASME B 1.1-2003
- Metric: ASME B 1.13M-2005
Available thread sizes (inch)
- Low Carbon Steel
- Short Pilot Long Pilot
- #8-32 1/4-20
- #10-24 5/16-18
- #10-32 5/16-24
- 1/4-20 3/8-16
- 1/4-28 3/8-24
- 5/16-18 7/16-14
- 3/8-16 7/16-20
- 3/8-24 1/2-13
- 7/16-24 5/8-11
- 7/16-20
- 1/2-13
- 5/8-11
- 3/4-10
Note: A variety of widths and thicknesses also available.
Available thread sizes (metric)
- Low Carbon Steel
- Short Pilot Long Pilot
- M5 x 0.8 M6 x 1.0
- M6 x 1.0 M8 x 1.25
- M8 x 1.25 M10 x 1.5
- M10 x 1.5 M12 x 1.75
- M12 x 1.75
- M16 x 2.0
Note: A variety of widths and thicknesses also available.
Note: Austenitic Stainless Steel nuts available in 1/4-20, 5/16-18, 3/8-16, 1/2-13 thread sizes.
Application notes
The three uniform weld projections provide solid contact with the weld surface and help accommodate weld surfaces that may not be perfectly flat. Location and threading of mated components is assisted by use of the weld nut’s precision pilot. The pilot also prevents the nut from slipping off center during the welding operation.
This Projection Weld Nut is extremely versatile and will provide a robust spot weld connection in a wide range of applications and conditions. This weld nut is easy to use and works well in a wide range of production environments.
