The Rivet King RK-777-3 Pro Freeset is an industry-changing alternative to pneumatics. For the first time with cordless rivet tools, the brushless motor of our Rivet King RK-777-3 Battery Operated Rivet Tools are capable of setting rivets faster than traditional air riveters.
In today’s competitive environment, the costs for maintenance of compressed air systems are being realized and work areas are more condensed. A tool-free of air, cords, and attachments is now possible with Freeset. The Rivet King RK-777-3 Pro cordless rivet tool can also be equipped with a barcode reader, force sensor and WIFI for process monitoring.
Contact Us for more information on how the RK-777-3 Battery Operated Rivet Tool can assist you with your cordless application needs.
Rivet King RK-777-3 Pro Series Specifications

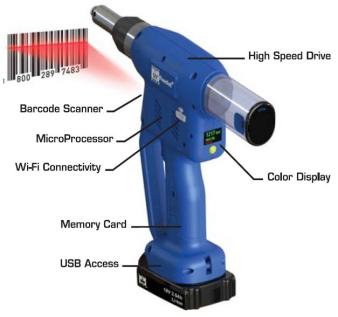

Out Pro, cordless riveting gun comes equipped with everything the Standard tool has with the addition of a force sensor that qualifies each rivet installation and provides operator feedback in a go/no-go format on the multi-color display. It also features a rivet counter that can be set for each job as well as the ability to store the installation force curves for up to 150,000 rivet installations. This data can be transmitted after each shift via a USB connection or can even be sent via the optional WIFI feature in real time to your process monitoring equipment.
The additional barcode reader can speed the transition from workstation to workstation or job to job by allowing you to simply scan the barcode associated with each workstation automatically setting the tools force parameters to the new rivet. The FreeSet Rivet King RK-777-3 battery operated rivet tool is unlike any other tool in the world, features include:
- 18V up to (7.5ah) Battery
- High Power Brushless Motor
- Work light
- Maintenance Management System
- Maintenance Interval Alarm / Buzzer
- Installs all rivets up to ¼”
Additional RK-777-3 Pro Cordless Rivet Tool Specs:
Additional RK-777-3 pro battery operated rivet tool specs, include:
- Force Sensor, Rivet Qualifier, Operator Feedback, Memory Card, Counter
- Storage of up to 150,000 rivet installations
- Multi-Color Display USB Connectivity, Software, Motor Control
- Optional Features: Barcode Reader, WiFi
Quickdraw Functionality
Our RK-777 Battery Operated Rivet Tools are enabled with QuickDraw functionality. The purpose of this function is to speed up the riveting process and limiting the stroke of the tool to only the stroke needed for effective riveting. This results in a quicker cycle time. Typically, pneumatic tools must reach complete stroke before completing the riveting cycle. The quickdraw function can recognize when the rivet has broken, even before the stroke capacity is reached. The tool will return to home position when it has recognized the rivet has broken. The quickdraw feature can be easily enabled, or disabled.
Rivet King FreeSet Benefits
FreeSet is a groundbreaking technology which offers the freedom of battery operated tools and combines it with smart technologies to provide an interactive riveting experience. The benefits of the FreeSet technology include the following:
Safer Work Environment
- Eliminates Trip Hazards
- Improves Ergonomics
- Improves Air Quality
Reduces Manufacturing Costs
- Quick Draw Technology drastically increases tool speed
- Cordless Tools use 99% less energy than air tools
- No pressure drops caused by compressors
- No Maintenance of oilers
- No more supply line leaks
- Portable and can be repurposed
- Eco/Green Friendly Reduces CO2 footprint
Quality Assurance
- Break Load/Installation on Force Measurement
- Error Proofing features with visual and audible alerts
- Data logging and access via Excel
- Increased operator/supervisor awareness
- Increased supervisor or engineering
- No cords to dirty or scratch painted or finished surfaces
- Test and compare batches of rivets
- Test tightness and set to a specific setting force
- Ensures the correct number of rivets has been installed
Contact Monroe JHP Fasteners Today!
Contact Us for more information on how our Rivet King RK-777-3 Pro cordless rivet tools can assist you with your next project, or call us directly at 800-783-0910 for all your tools, rivets and more!
