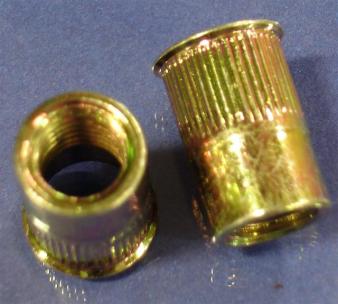

Ribbed Rivet Nut with Small Flange
The small flange, knurled, metric body rivnut is a good choice for use in applications that require a near-flush installation, as well as increased strength and improved containment of round or oversized holes. They are easy to install and require no special tooling or expertise. These industrial fasteners are offered by Monroe-JHP Fasteners in a variety of materials and thread sizes.
Properties of Metric Small Flange Knurled Rivet Nuts:
Materials:
- Steel (finished in Zinc Plate-Yellow Dichromatic ASTM B633 Fe/Zn 8, Type II)
- Aluminum (plain finish)
Note: Special finishes or materials available upon request.
Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.
Available thread sizes and diameters
- Thread-Metric Diameter (mm)
- M4 x 0.7 5.95
- M5 x 0.8 6.95
- M6 x 1.0 8.95
- M8 x 1.25 10.95
- M10 x 1.5 12.95
Metric Ribbed Nutsert Application Notes:
The grip range of these rivnuts can be affected by the type of sheet material being used. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application. Installation of the small flange, knurled, metric body rivnut is accomplished via use of hand tools that can be pneumatic, hydraulic, or manual. There is no other special equipment required. The knurled body provides extra resistance to spin-out, and the small flange ensures a near-flush installation within its parent material.
These rivnuts are easy to install and will provide robust performance in a wide range of applications. In mid to high-volume applications, they can reduce assembly cost when compared to use of loose nuts and bolts.
Contact JHP Fasstenrs for Metric Knurled Riv Nuts
For friendly service, expert consultation, and competitive pricing, JHP Fasteners can be your one-stop shop for industrial fasteners.
Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
