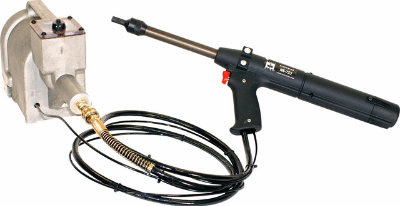

QuickRiveting Riveter

Auto Feed Quick-Riveting

With a cycle time of only 1-2 seconds, this is one of the best options available for semi-automatic rivet installation. Combined with low operator fatigue and a quick magazine reload time, you can dramatically increase production over conventional riveting tools.

A Hydra-Pneumatic Riveter

Key features and characteristics:

• Part # RK-753
• Available in several different mounting configurations.
• Rivets are supplied in magazine form which rivets are easily loaded into the riveting handle.
• Rivet installation speed of up to 1 rivet per second.
• Setting capacity: 3/32”, 1/8”, 5/32”, 3/16”
• Air supply pressure: 72.5psi – 101.5Psi
• Stroke: 1.18” minimum
• Weight: 2.4lbs

Machine Loaded RK-753 Rivets

The RK-753 uses special rivets, machine loaded onto a disposable paper strip. Although these rivets do not provide the same level of fastening strength as a standard rivet, they compensate for that with a low profile and ease of installation.

The Quickriveting Advantage

The Quickriveting system is all about speed. You can install rivets as fast as the nose of the tool can find the next hole. With the handheld portion weighing in at only 2.37 lbs. and sporting a comfortable pistol grip, you can install rivets for hours while experiencing little fatigue when compared with other standard rivet tools.

Save Time and Money with the RK-753 Auto-Feed Rivet Tools

If you are involved in the semi or full production riveting of light to medium duty components, you should really give the RK-753 Quickriveting tool a serious look. It’s proven technology that can save you both time and money.

Please contact us directly so we can help you determine if this tool is right for your application. If this tool fits your needs we would be happy to set up a demonstration at your facility and test it on your parts.

Click HERE for a copy of our Quick-Riveting flyer. Or Contact us Today
